Digital Playground: Building a Secure Exploit Laboratory

After years of doing security work on a laptop with VMware Workstation, I finally decided to build a dedicated lab environment that could handle serious exploit development and malware analysis. Today I'm sharing the setup that's transformed my security research capabilities - from hardware choices to network isolation strategies.

Digital Playground: Building a Secure Exploit Laboratory

Why I Built a Dedicated Lab: The Limitations of Laptop-Based Research

For years, I ran my security research off a laptop using VMware Workstation. While VMware is an excellent platform with great snapshot management and a clean interface, I kept hitting limitations. Running multiple VMs simultaneously, especially when analyzing malware or developing exploits, would bog down the system. The host OS consuming significant resources meant I was always making compromises about what I could run.

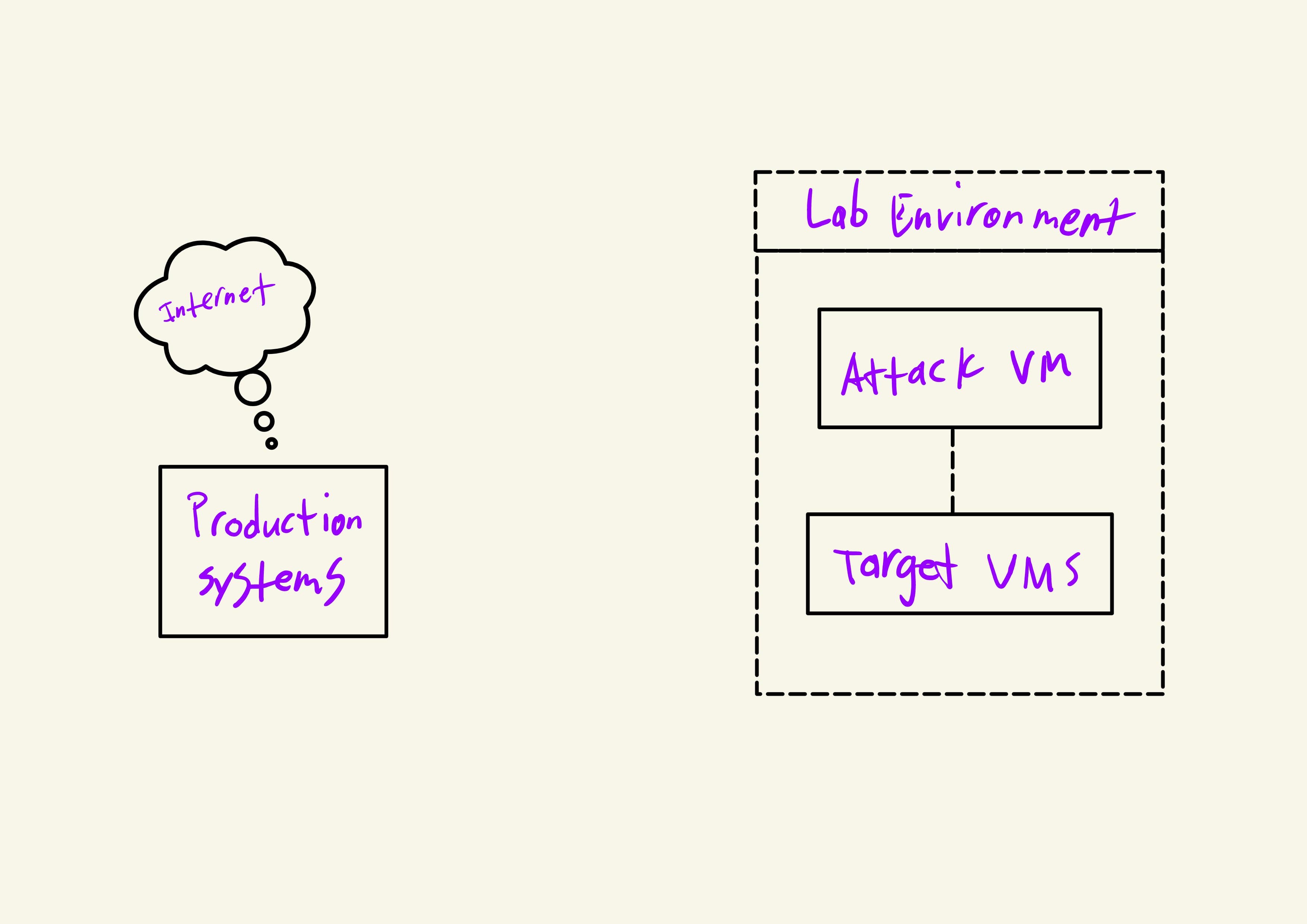

The tools and techniques I use in security research are powerful – that's what makes them valuable, but it's also what makes them potentially dangerous if mishandled. Think of exploit development like working with biological samples – you need proper containment to ensure nothing harmful escapes into the wild.

The Hardware Foundation: Building for Flexibility

I wanted a system that would serve me well for years to come, so I went a bit beyond what's strictly necessary. But having the flexibility when you need it is worth the investment:

-- Case: Lian Li Q58

CPU: Intel i9-14900K (high thread count for virtualization)
Motherboard: MSI MPG B760I Edge
Memory: 64GB DDR5
Graphics Card: MSI GTX 1080ti (that I scrapped from an older pc)
Power Supply: Lian Li SP850
AIO Cooling: Thermaltake TH280
Primary Storage: 2x 4TB NVMe SSDs configured in ZFS RAID 1 (mirror) mode for redundancy and performance
Backup/Utility Storage: 8TB External Drive (USB 3.0)

The key decisions here were the high memory capacity (64GB lets me run multiple resource-intensive VMs simultaneously) and ZFS storage (provides both performance and data protection for my research work).

Proxmox VE: Moving Beyond Type 2 Hypervisors

Like many security researchers, I migrated from VMware Workstation to Proxmox VE. It hasn't been as plug-and-play as VMware, but the benefits are significant:

Type 1 vs Type 2 Hypervisors:

Type 1 (Bare-Metal): Runs directly on hardware (Proxmox VE, ESXi, Hyper-V)
- Better performance, more isolation
- Requires dedicated hardware, more complex setup
Type 2 (Hosted): Runs on top of existing OS (VMware Workstation, VirtualBox)
- Easier setup, more flexible for casual use
- Performance overhead, dependent on host OS

For serious security research, Type 1 hypervisors provide the isolation and performance you need.

My Current Lab Structure

Here's how I've organized my virtual environment:

VM ID	Name	Dataset	CPU	RAM	Disk	Network
101	dhcp-vmbr1	management	1	256MB	1G	vmbr1
102	dhcp-vmbr2	management	1	256MB	1G	vmbr2
200	ParrotOS-Security	security	8	16GB	150G	vmbr1
201	vuln-web-hub	security	2	2GB	30G	vmbr1
202	Metasploitable 2	security	1	1GB	10G	vmbr1
203	Metasploitable 3	security	4	6GB	60G	vmbr1
204	Win7 Target	security	2	4GB	40G	vmbr1
205	Win10 Target	security	2	6GB	60G	vmbr1
206	Win11 Target	security	4	8GB	60G	vmbr1
207	Windows Server 2016 Target	security	2	6GB	60G	vmbr1
208	Windows Server 2019 Target	security	2	6GB	60G	vmbr1
209	Windows Server 2022 Target	security	2	4GB	40G	vmbr1
300	FlareVM-Malware	malware	8	16GB	350G	vmbr2
301	REMnux	malware	4	8GB	100G	vmbr2
302	ParrotOS-Malware	malware	8	16GB	150	vmbr2

This gives me dedicated environments for exploit development, malware analysis, and various target systems to practice against.

Network Isolation: The Critical Security Layer

Proper network isolation is probably the most important aspect of a safe security research environment. I've kept my networking relatively simple but effective:

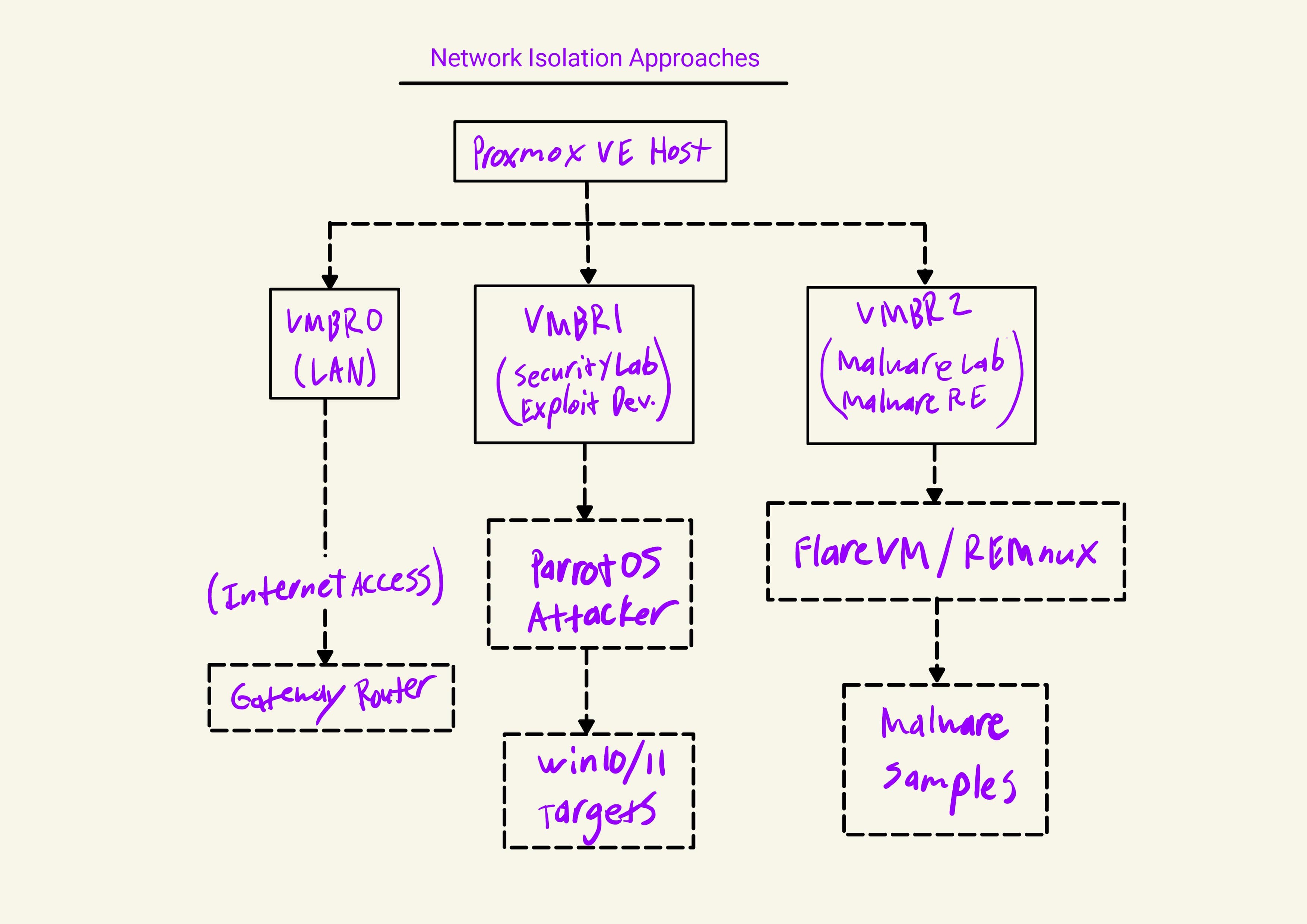

Three-Network Strategy

VMBR0 - Bridged network for systems that need internet access (management, updates)

VMBR1 - Exploit development environment - completely isolated network with its own IP range

VMBR2 - Malware analysis environment - the most restricted network for analyzing live malware

DHCP Management

I run Alpine container templates with dnsmasq as DHCP servers for VMBR1 and VMBR2. These automatically assign static IP addresses based on MAC addresses. It's a convenience feature - you could manually configure networking on each VM, but I prefer the centralized approach.

Proxmox Firewall Integration

One feature I really appreciate about Proxmox is its built-in firewall capabilities. Instead of setting up dedicated firewall VMs, I can configure rules at multiple levels:

VM level: Rules specific to individual machines
Node level: Rules for the physical host
Datacenter level: Global rules across the environment

I have rules that allow specific ports I need while blocking inbound and outbound traffic by default. This approach balances isolation with the practicality of updating systems and downloading tools.

Attack Platform: Parrot OS Configuration

For my primary attack platform, I use Parrot OS instead of the more common Kali Linux. It's really a personal preference - both are excellent security distributions. I find Parrot OS has:

Lower resource requirements
Better out-of-the-box desktop experience
Includes firejail for additional sandboxing
More privacy-focused by default

My Parrot OS VM Specifications

While Parrot OS can run on modest hardware, I allocate significant resources to ensure smooth operation:

CPU: 8 cores (overprovisioned for multi-tool workflows)
RAM: 16GB (allows running Binary Ninja, Burp, browsers simultaneously)
Disk: 150GB thin-provisioned on ZFS with compression
Display: virtio-gpu for optimal GUI performance

Proxmox Configuration Details

CPU Type: Set to host for full instruction set access
Virtualization: KVM and nested virtualization enabled
BIOS: UEFI (OVMF) for modern OS compatibility
Network: Connected to both vmbr1 (isolated) and vmbr0 (bridged) as needed

Target Environment Strategy

Beyond the attack platform, I maintain various target systems:

Vulnerable Applications Hub

VM 201 serves as a hub for web application testing with DVWA, bWAPP, Mutillidae, and WebGoat pre-configured and ready to attack.

Windows Target Variety

I maintain multiple Windows versions to practice against different vulnerability classes and understand how exploitation techniques vary across OS generations.

Purpose-Built Vulnerable Systems

Metasploitable 2 and 3 provide known-vulnerable Linux environments for practicing specific techniques.

Operational Security Layers

Snapshot Management

Proxmox's snapshot system, especially with ZFS backing, makes it easy to:

Take snapshots before major experiments
Maintain clean baselines for each VM
Schedule automated snapshots for protection
Quickly roll back after testing

I've developed a habit of taking snapshots before any significant testing - it's saved me countless hours of rebuilding corrupted systems.

Backup Strategy

Daily compressed backups via Proxmox GUI
External storage for backup retention
Manual backups before risky operations
Separate backup datasets for different research areas

External Storage Organization

My 8TB external drive organizes research data:

For Exploit Development:

/writeups - Analysis notes and findings documentation
/data - Compiled payloads and fuzzing results
/backups - VM dumps and snapshots

For Malware Analysis:

/malware_repo - Live samples and unpacked binaries
Accessible only to vmbr2 VMs
Blocked from other networks via firewall rules

Lessons Learned from the Migration

Moving from a laptop-based VMware setup to a dedicated Proxmox lab has been transformative:

Performance: No more choosing between running multiple VMs or maintaining host system responsiveness

Isolation: Better separation between analysis environments and production systems

Scalability: Easy to add new VMs for specific research projects

Reliability: ZFS and proper backups mean I spend less time rebuilding and more time researching

Flexibility: Multiple network segments allow for complex testing scenarios

The setup process was more involved than VMware Workstation, but the operational benefits make it worthwhile for serious security research.

Getting Started with Your Own Lab

If you're considering building a dedicated security research lab:

Start with your constraints: Budget, space, and noise considerations
Plan for growth: Build in more capacity than you think you need
Prioritize isolation: Network segmentation is more important than raw performance
Automate backups: You will break things - plan for recovery
Document your setup: You'll forget configuration details over time

Whether you choose Proxmox, ESXi, or stick with hosted solutions like VMware Workstation, the key is creating safe, reproducible environments where you can push boundaries without consequences.

Until Next Time

Building this lab has fundamentally changed how I approach security research. Having dedicated, isolated environments removes the friction that previously limited my experimentation. The investment in proper hardware and hypervisor setup pays dividends in both capability and peace of mind.

I'd love to hear about other lab setups in the security community. What hypervisor platforms do you prefer? How do you handle network isolation and backup strategies? Drop your thoughts in the comments or reach out on X - I'm always curious to learn from other researchers' approaches.

Build smart, break safely,
